Size of the mass
(AP) x (LL) x (CC) cmIs prior imaging available?
Location of the mass
Laterality:
Along CC dimension:
Along LL dimension:
Along AP dimension:
Depth Extension
T2 Signal Intensity
Assess T2 signal ONLY in enhancing component of tumor
Intensity Relative to Background Renal Cortex
Pattern of T2 Signal
T2 Signal Intensity
T2 Signal Intensity should be evaluated on single-shot fast spin-echo (ie, without fat saturation) based on the predominant signal in the enhancing component of the mass ≥2 minutes after contrast administration

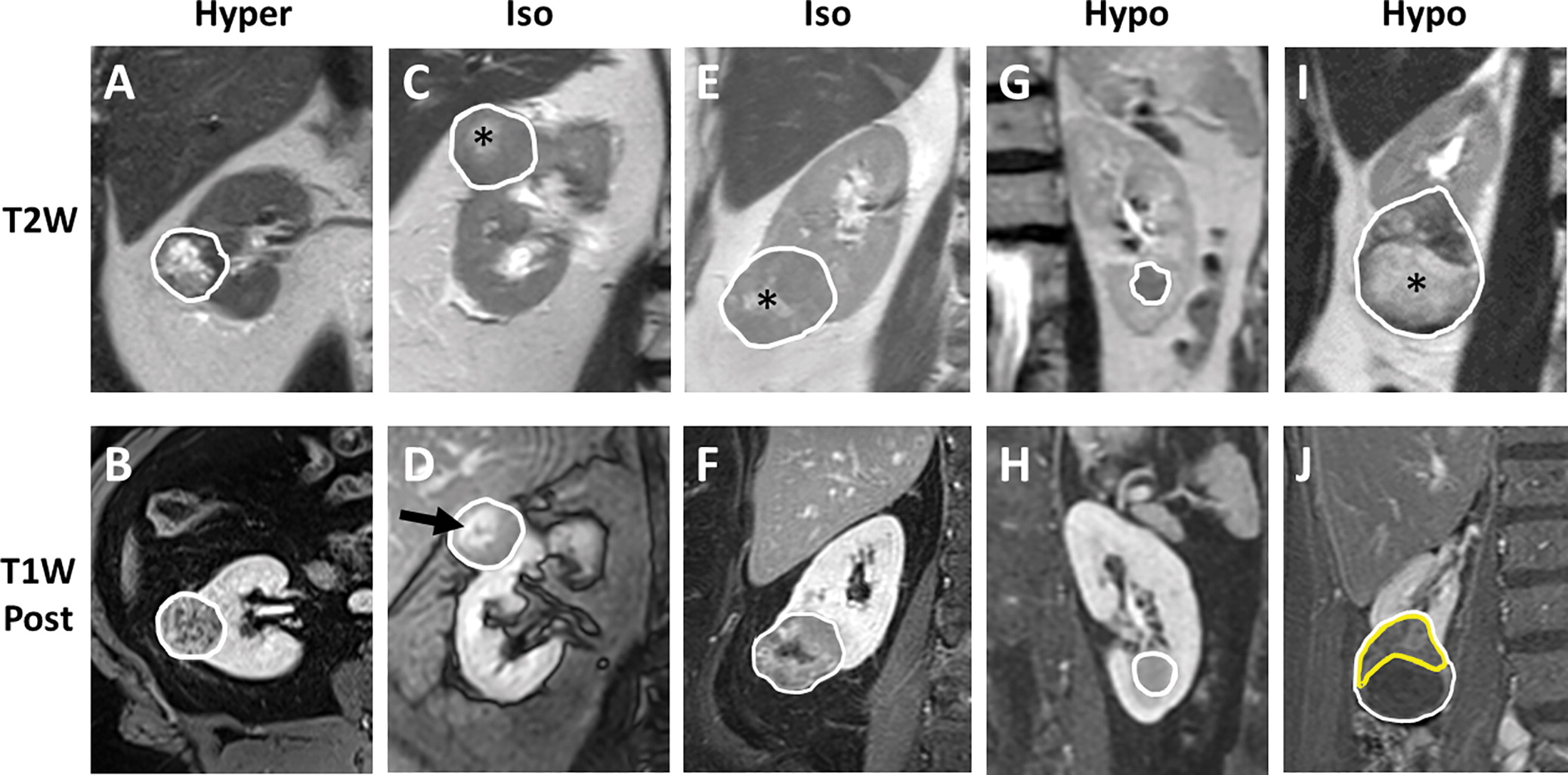

(A, B) The mass has heterogeneous but diffuse enhancement. Thus, the mass is classified by its predominant hyerintense T2 signal (Hyper).
(C, D) The mass enhances diffusely. There is central scar that enhances more intensely (arrow in D) with corresponding T2 hyperintense area (* in C). However, the predominant signal at T2-weighted imaging is isointense (Iso) to the renal cortex.
(E, F) A small central T2 hyperintense area (* in E) does not enhance. However, the predominant T2 signal in the rest of the enhancing areas is isointense to the renal cortex.
(G, H) The mass has diffuse homogeneous enhancement. Thus, T2 signal should be assessed across the entire mass and categorized as hypointense (Hypo).
(I, J) A large T2 hyperintense area of cystic degeneration with hemorrhagic fluid (ie, precontrast T1 hyperintensity; not shown) is present inferiorly (* in I). This area does not enhance (J, T1-weighted postcontrast minus precontrast) and thus should be ignored. The predominant T2 signal in the enhancing component of the mass (yellow outline in J) is hypointense.
Enhancement Characteristics at Corticomedullary (CM) Phase
Assess area with the HIGHEST enhancement on CM phase
Degree of Enhancement Relative to Background Renal Cortex
Pattern of Enhancement
Corticomedullary Phase Enhancement
Analysis of enhancement on CM phase should be performed with an ROI (yellow circles) in the area of the renal mass that has the most subjective enhancement, avoiding areas with decreased enhancement, necrosis, hemorrhage, cystic degeneration, or portions of internal tumor vasculature.

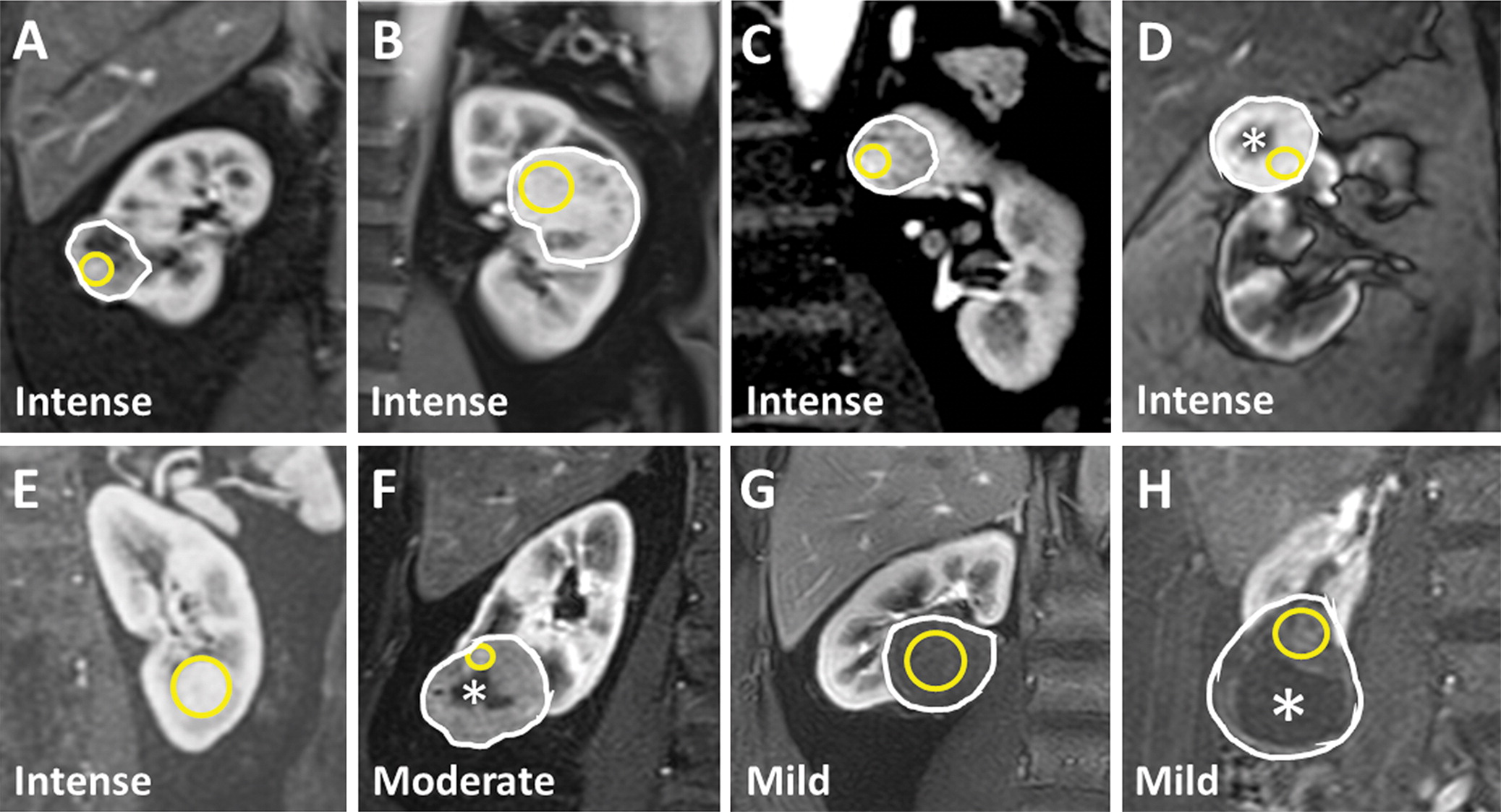

(A) In a mass with heterogeneous enhancement, select the focal region with intense enhancement. (B) In a mass with diffuse intense enhancement, select the homogeneous region avoiding patchy hypointense foci. (C) In a mass with background moderate enhancement, select the focus of intense enhancement. (D) Avoid placing the ROI on a region of central non-enhacement (*). (E) A large ROI is appropriate for this mass with homogeneous intense enhancement. (F) Although the ROI is appropriately placed on the small focus of increased enhancement while avoiding an area of central non-enhancement (*), the enhancement was still moderate by ccLS criteria (G) A large ROI is appropriate for this mass with homogeneous, nearly imperceptably mild enhancement (H) Subtraction (CM phase - Precontrast) image helps visualize a region of mild enhancement, avoiding an area of cystic degeneration with hemorrhagic fluid (*) which was hyperintense on Precontrast T1 image (not shown).
T1 Chemical Shift
Diffusion Weighted Imaging (DWI) Characteristics
Assess on high b-value DWI sequence (i.e. 800 sec/mm2)
DWI Signal Relative to Background Renal Cortex
Apparent Diffusion Component (ADC) Map Signal Relative to Background Renal Cortex
Is Segmental Enhancement Inversion (SEI) Present?
Segmental Enhancement Inversion
Presence of segmental enhancement inversion refers to a renal mass that demonstrates areas of both hyperenhancement and hypoenhancement during the corticomedullary phase that respectively become relatively hypoenhancing and hyperenhancing, during later phases after contrast administration.

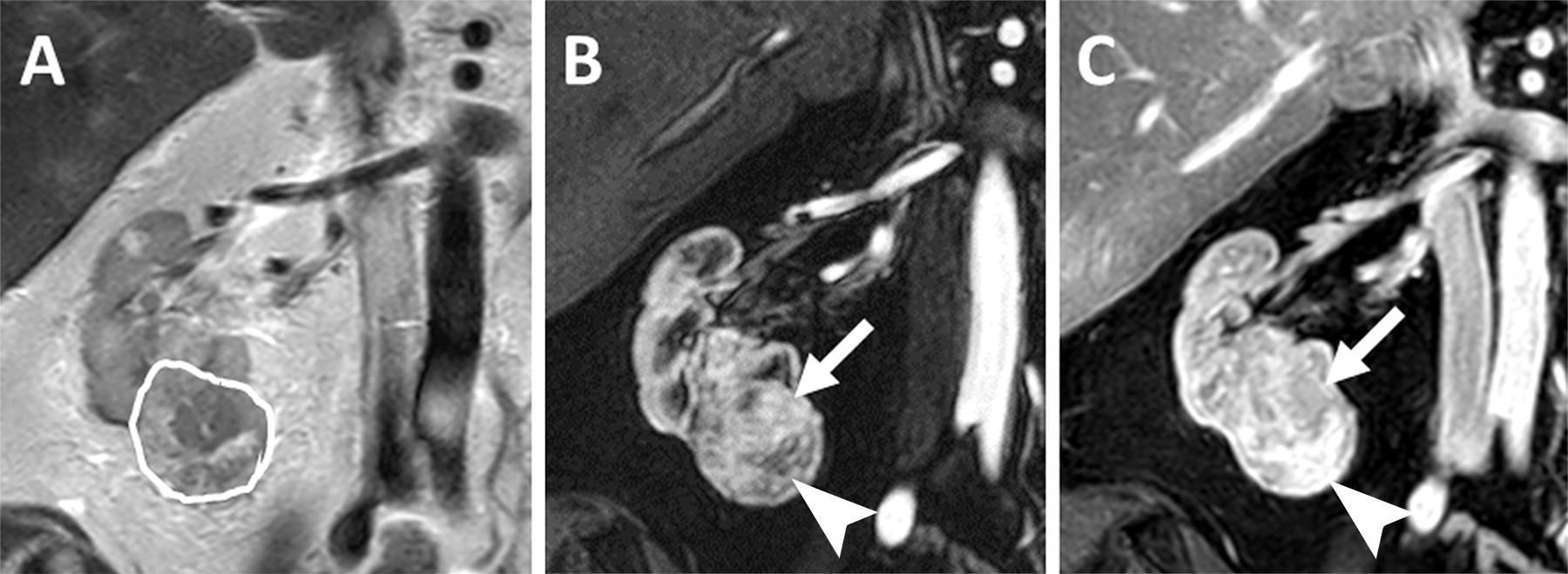

(A) This mass is heterogeneous although predominately T2 hyperintense. (B, C) Post-contrast images in the (B) corticomedullary and (C) late nephrographic phase demonstrates regions of hyperintensity on CM phase that relatively washout at late nephrographic phase (arrow) as well as regions of hypoenhancement on CM phase that develop relatively intense enhancement at late nephrographic phase (arrowhead). This is segmental enhancement inversion.
Is Tumor Washout Present?
(i.e., Arterial-Delayed Enhancement Ratio (ADER) ≥ 1.5)
MRI Staging
Renal Vein Anatomy
Renal Vein Thrombus
Renal Artery Anatomy
Generate the Report:
Findings:
- Size: ___
- Location: ___; ___; ___.
- Depth extension: ___.
- T2 signal relative to renal cortex: ___; ___.
- T1 chemical shift: ___
- High b-value DWI: ___; ADC: ___.
- Enhancement (corticomedullary) relative to renal cortex: ___; ___.
- Segmental Inversion Enhancement: ___.
- Clear cell RCC Likelihood Score (ccLS; 1-5): ___.
- Fat Poor AML suspected: ___.
- Oncocytoma suspected: ___.
- MR Staging: ___.
- Renal vein anatomy: ___.
- Renal vein thrombus: ___.
- Renal artery anatomy (ipsilateral): ___.
